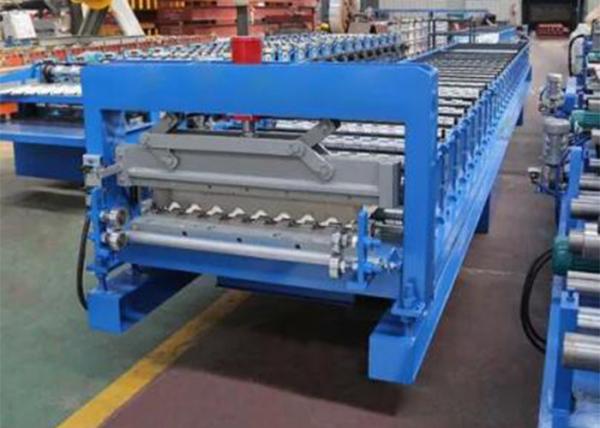

Australian Style 0.3 - 0.8mm thickness Shutter Door roll forming machine

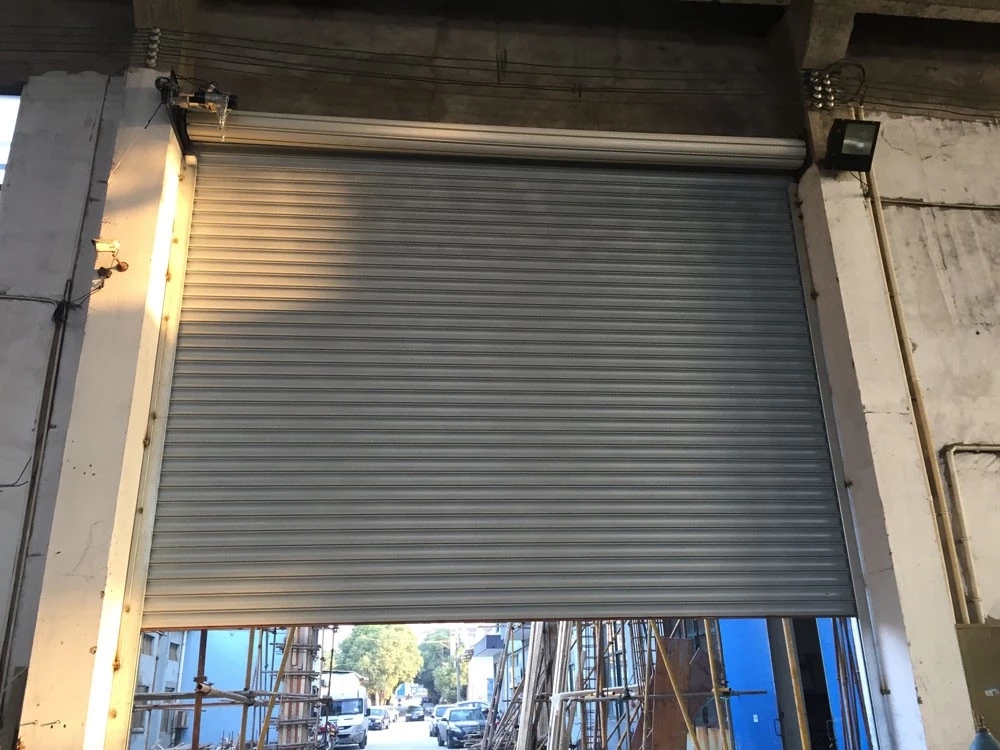

Our company can customize different plate shutter door cold bending machine, it has excellent quality, the price is appropriate. Our machines are sold abroad due to its good quality, high efficiency, machine stability . Products are widely used in shops, business companies, family lifes. The products it made win a good reputation all over the world since our company was established.
Technical Parameters:
Working Material:Galvanized Sheet(Gi),Cold Roll Steel(CRC),Hot Roll
Thickness:0.3-0.8mm
Yield Strength:235-400MPa
Decoiler:Manual/Hydraulic for Options
Side Wall Thickness:18mm
Shaft:75mm
Forming Station:20 stations
Cutter Material:Cr12 Tool Steel
Output:About 12-18 Meters Per Minute
The advantages of our shutter door machine are as follows:
1 . Able to produce two different profiles.
2 . Save space,more convenient.
3 . Easy operation, low maintenance cost
4 . Stable and durable
Processing flow of machine:
Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Exit table

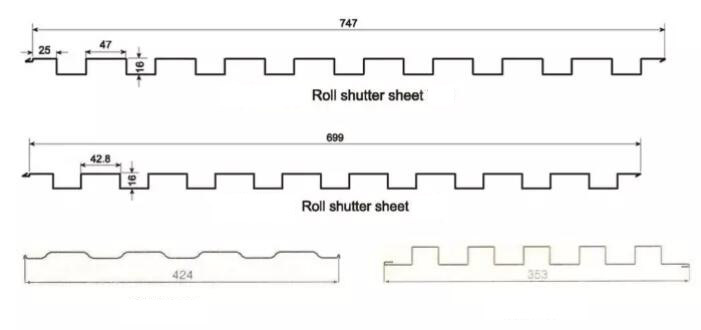

We can make and design machine for composition brand, profile drawing, manual or automatic according to customer's requirements.

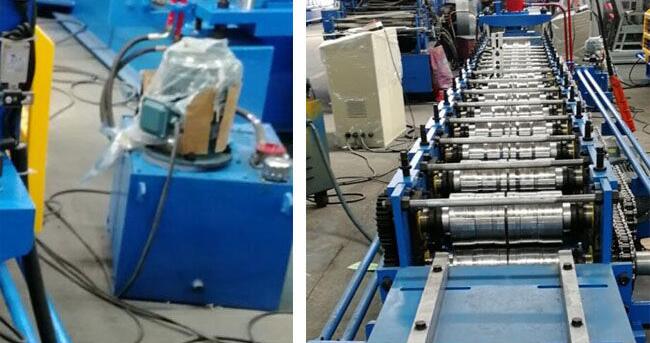

Machine Parts:
1) Australian Style Rolling Shutter Door Machine pre cutter
2) Australian Style Rolling Shutter Door Machine rollers
Rollers manufactured from high quality 45# steel , CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400# H type steel by welding
3) Australian Style Rolling Shutter Door Machine Scrap Coiling System
4) Australian Style Rolling Shutter Door Machine post cutter
Made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
Hydraulic motor:2.2KW, Hydraulic pressure range: 0-16Mpa
5) Australian Style Rolling Shutter Door Machine control cabinet
6) Australian Style Rolling Shutter Door Machine occlusion device
7) Australian Style Rolling Shutter Door Machine decoiler
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 1250mm, coil ID range 470mm±30mm
Capacity: Max. 8 Ton
With 6 tons hydraulic decoiler for option
8) Australian Style Rolling Shutter Door Machine run out table
Un-powered,one unit
Suitable for material with thickness 0.3-0.8mm
Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined
Motor driving,Gear chain transmission,20 steps to form
Main motor=7.5KW , Frequency speed control. Forming speed approx.12-15m/min
Q&A:
1 . Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2 . Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3 . How to visit your company?
Fly to Shanghai airport: By high speed train From Shanghai(1 hour) and get off at East Wuxi Station , then we can pick up you.
4 . What can you do if the machine broken?
Our machine's warranty period is 12 months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
5 . Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
