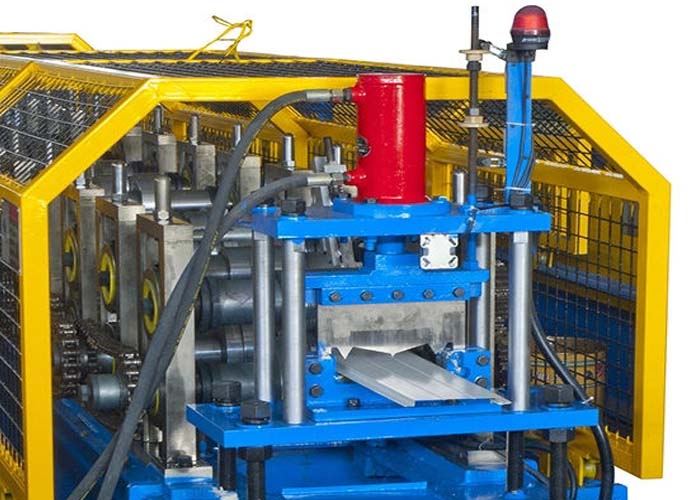

20 stages shutter door roll forming machine 12m / min 0.5 - 1.2mm thickness
Description:
Our shutter door forming machine has many advantages of stablity, efficiency, material saving, low noise. And our machines work within high speed which improves its productivity greatly. Besides, Its products have high quality and fashionable styles. It is widely used in stores, warehouses, buildings, welcomed by customers throughout the world. The machines can be designed to produce different shapes and sizes according to customer's requirements.
Type: roller shutter door machine
Suitable material:Color steel sheet or galvanized steel sheet
Feeding width:398/498mm
Dimension(L*W*H):8750mm*1380mm*1400mm
Weight:5800KG (estimated only)
Machine parameter:
| (1)The general machine parameter |
| Suitable roll forming material | Color steel sheet or galvanized steel sheet |
| Thickness | 0.5-1.2mm |
| Effective width | 300/400±3mm |
| Feeding width | 398/498mm |
| Frame design | Wall-plate-frame-design /Strong-stand-frame-design |
| Roll stages | 20 stages |
| Material of forming roller | 40Cr, CNC lathes, Hard Chrome Coated |
| Shafts Diameter | 75mm |
| Main motor power | 7.5KW, frequency speed control |
| Max. Line speed of roll former | 12m/min (Higher speed is available, depends on the specification required by the buyer) |
| Hydraulic group power | 4 KW |

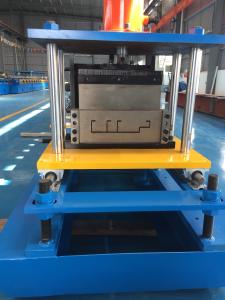

| Material of cutting blade | Cr12, heat treatment |
| Electric Standard | 380V /50Hz/3PH or as the customer's requirements |
| Machine Dimensions | 8750mm×1380mm×1400mm |
| Major Color of Machine Painted | RAL 5015 (Blue) or as per customer’s requirements |

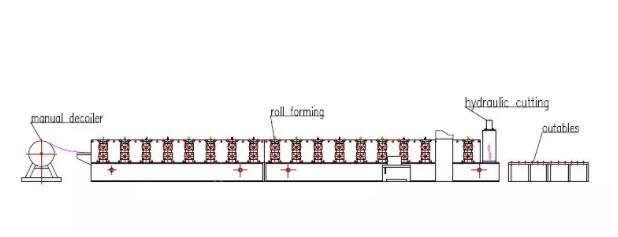

Working flow of the roller shutter door machine:
5T manual decoiler→Guiding→Roll forming→hydraulic cutting→Outables
Detailed information:
1. Roll stages:20 stages
1)Material of forming roller:40Cr, CNC lathes, Hard Chrome Coated
2)Max. Line speed of roll former:12m/min

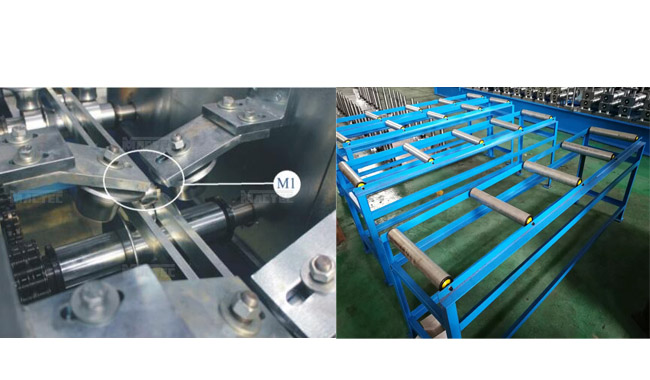

3)Use extra correction rollers to make sure the ideal shape and precision of the finished product.
2. Product rack:
1)un-powered, 3 units
2)The table is 2m long
3)It is consists of sliding rolls,welded angles
After-sale service:
1. Installation and training of roof forming machine:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service of roof forming machine:
a.One year guarantee for whole roof forming machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the roof forming machine, we will repair it for free in one year.
