Corrugated Steel Panel Roll Forming Machine 18 Rollers 180KW Large Capacity

Product Categories

Wuxi YBT Machinery Equipment Co.,Ltd.

Contact Now

Place of Origin : China

Brand Name : YBT

Certification : CE ISO SGS

Model Number : YB983459

MOQ : 1 Set

Price : Negotiation

Packaging Details : Standard export packing with each machine tied and protected in container

Delivery Time : 60-90 days

Payment Terms : T/T

Supply Ability : 10set

Name : silo roll forming machine

Raw Material : galvanized sheet, zinc aluminum sheet

Forming Stations : 18 rollers

Main Power : about 180KW

Total Weight : 70T

Material of Roller : GCr15 quenching HRC 58-62°

Contact Now

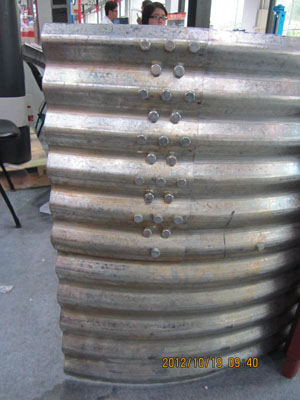

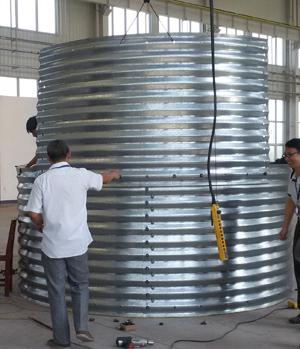

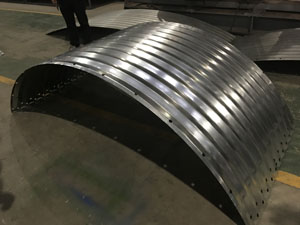

Steel Silo Corrugated Side Panel Roll Forming Machine Silo Roll Forming Machine

Features

1. Large capacity

One single-silo capacity is up to 17,000 tons with comprehensive configurations to meet customers’ different requirements.

2. High accuracy

Complete advanced processing equipment and technology are introduced from USA to effectively ensure working accuracy and reduce damage to galvanized layer.

3. Less residues

External installable stiffeners contribute to less grain residues on silo walls.

4. Detachable and movable

With standardized and modularized production, components and parts have a high standardization and good interchangeability, thus can be partially replaced or completely transferred.

Corrugated Steel Panel Roll Forming Machine 18 Rollers 180KW Large Capacity

Component

De coiler

Material width adjusting and guiding equipment

Roll former

Curving equipment

Cutting machine

Hydraulic control system

Technical process

Decoiling →Guiding→Cutting→Roll forming→Curving equipment

Technical parameter

Suitable Raw Material	galvanized sheet, zinc aluminum sheet
Material’s Strength	310MPa
Material’s Thickness	1.2-4.5mm
Forming Stations	18
Max. Feeding Width	1250mm
Diameter of Roller’s Shaft	120mm
Producing Speed	4-8m/min
Material of Roller	GCr15 quenching HRC 58-62°
Drive Mode	gearbox
Main Power	about 180KW
Electrical Control System	PLC frequency control
Power Supply	AC 440V & 50HZ & 3PH
Dimension(LWH)	35m4.5m4.5m
Total Weight	approx 70T

Corrugated Steel Panel Roll Forming Machine 18 Rollers 180KW Large Capacity
