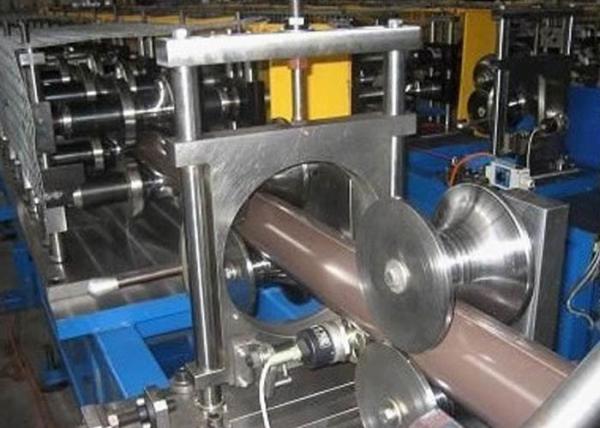

0.3 - 0.8mm Rainwater Downpipe Roll Forming Machine with Flying Saw Cutter

Product Categories
Wuxi YBT Machinery Equipment Co.,Ltd.
Contact Now

0.3 - 0.8mm Rainwater Downpipe Roll Forming Machine with Flying Saw Cutter

Brand Name : YBT

Model Number : BT252607

Certification : CE ISO SGS

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 10 set

Delivery Time : 45-60 days

Packaging Details : Standard export packing with each machine tied and protected in container

Name : Downpipe Roll Forming Machine

Thickness : 0.3-0.8mm

Voltage : 380V 50Hz 3phases

Control system : PLC control

Color : up to user

Usage : downpipe system

Contact Now

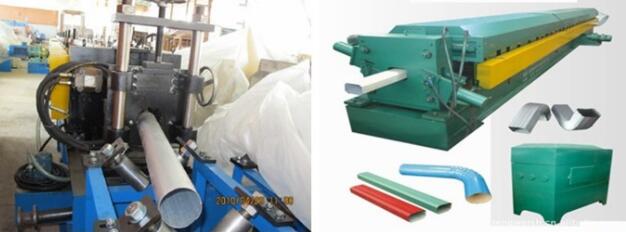

0.3-0.8mm Rainwater Downpipe Roll Forming Machine with Flying Saw Cutter

Product description

We have marked a distinct and dynamic position in the market by providing a high-quality array of Downspout Roll Forming Machine that is fabricated under the guidance of our skilled professionals using the latest technology in compliance with international quality standards. The components used for fabricating this machine are procured from our associated vendors. This Downspout Roll Forming Machine is widely used in the production industry for making downpipe. Our offered Downspout Roll Forming Machine is praised among our clients for its attributes like high performance, excellent functionality, sturdy construction, low maintenance, and reliability.

0.3 - 0.8mm Rainwater Downpipe Roll Forming Machine with Flying Saw Cutter

Working Flow of Roll Forming Machine

De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table

0.3 - 0.8mm Rainwater Downpipe Roll Forming Machine with Flying Saw Cutter

Main Technicial Parameter of Downpipe roll forming machine

No. main parameter of gutter roll forming machine
1 Suitable to process Color steel plate
2 Width of the plate 200-600mm
3 Rollers 24rows
4 Dimensions 8.6*0.8*1.2m
5 Power 4+3kw
6 Thickness of the plate 0.3-0.8mm
7 Productivity 8-12m/min
8 Diameter of the roller 5tons
9 Weight About 5 T
10 Voltage 380V 50Hz 3phases
11 Rolling material Carbon Steel 45#
12 Material of the cutting plate Cr12
13 Processing precision Within 1.00mm
14 Control system PLC control
15 Side panel of machine 14mm
16 Main structure of the machine 300 H steel
17 Weight About 4.5 T

Main Accessories of downpipe roll forming machine

1 Decoiler(manual or hydraulic for options) 1 set
2 Feeding device 1 set
3 Main Forming Machine 1 set
4 Hydraulic cutting device 1 set
5 Hydraulic Station 1 set
6 PLC computer control system 1 set
7 4m Run Out Table 1 set

Our Services

Before-sales

  1. We will answer the customer asap. (within 24hours)
  2. We can design the machine according to customer’s detail requests.

After-service:

  1. In correct operation & maintaining, the machine is guaranteed for one year
  2. If necessary, we will dispatch technicians to install and commissioning, and also our technicians will teach and training the customer’s workers to use the machine better.
  3. We will provide long-term technical assistance.

We supply all life tech support of our roll forming machines, Any questions, you can contact me by whatsapp.:+0086 17768307386
( I suggest that whatsapp or wechat is good. Because i can get your words timely) Important thing, you can write mail to me.
