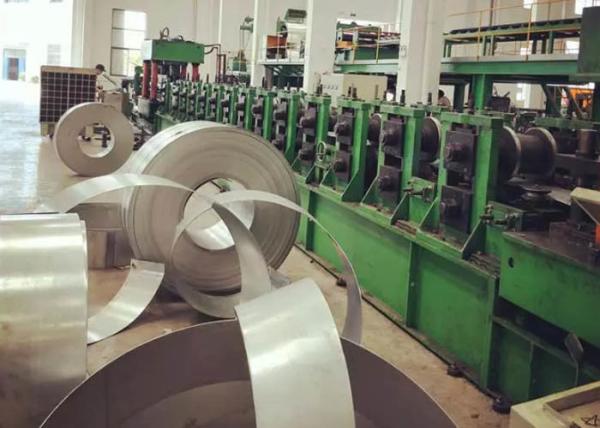

High Grade Steel Silo Forming Machine and Galvanized Sheet Metal Roll Former
Application
Grain bin, steel silo which are noted for their great ,quickly installation and good sealng effect or liquid materials, with their excellent quality and reliable performance , they have been applied widely in fields such as grain, oil, chemicals. brewary,food processing, cement, coal and so on , they can be used as warehouse or residence house.
Machine Working Process
Decoiler(to expand and fight the coil)--Feeding and Guiding(the coil)--Post Cutting(cut the required length)---Post Punching(punch holes)--Main Roll Forming--Bending(bend the steel silo)--Runout Table (To Collect the Products)
Specifications of Silo Panel Roll Forming Machine
| No. | Item | Description |
| 1. | Coil width | Depend on your profiles |
| 2. | Working speed | 12-15m/min |
| 3. | Roll station | about 16 - 24 stations |
| 4. | Material of roller | Grade 45 steel, polished and coated with chrome |
| 5. | Material of main shaft | 45﹟ steel |
| 6 | Diameter roller | 70mm |
| 7. | Main power | 7.5KW |
| 8. | Forming thickness | 1.0mm zinc and color steel, 250Mpa-G550MPA |
| 9. | Transmission | by single Chains 1.5inch |
| 10. | Feeding and guide | Surface polished and coated with chrome |
| 11. | Machine drive parts | Adopt protect cover |
| 12. | Machine station | Adopt new station with chrome |
| 13. | Size of main machine | 7500x1500x1300(mm) L x W x H need 1x40GP container |
| 14. | Weight | about 8000Kgs |
| 15. | Color of machine | Blue ( or depend on customer’s request) |
| 16. | Machine legs | Four legs (made from metal) in 350mm |
Composition of machine
| No. | Composition of machine | Quantity |
| 1 | Roll forming main machine | 1 unit |
| 2 | Manual Uncoiler | 1 unit |
| 3 | Control panel | 1 unit |
| 4 | Cutting device | 1 unit |
| 5 | Manual out table | 2 unit |
Description
1: We have professional engineering team and can use the Copra Software skifllfully to design the forming diagram according to the profile drawing.
2: We adopt the heavy stands to make the machine robust and strong.
3: We adopt hydrauli flying shear all profiles.
4: The step beams is popular used in the project of supermarket construction in North America and
South America e.g Mexico, Argentina,Chile and so on.
5: We exported the step beam machine to Mexico and all of the profiles produced can meet the customer’s requirements.
6: We also can supply accessories parts machine together with rack machine,crossbar machine,base machine etc.
