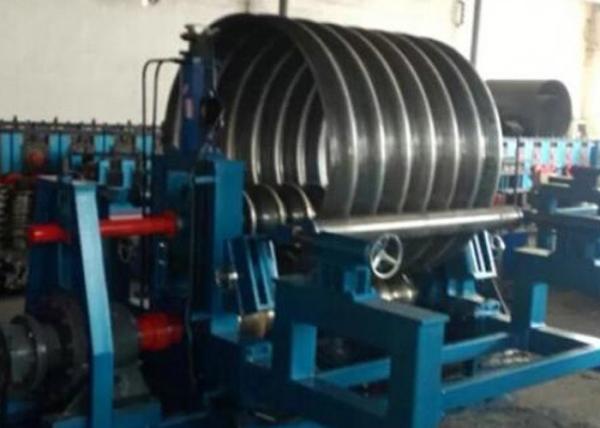

12-15m/min Automatic Silo Forming Machine and Silo Panel Roll Forming Machine
Introduction

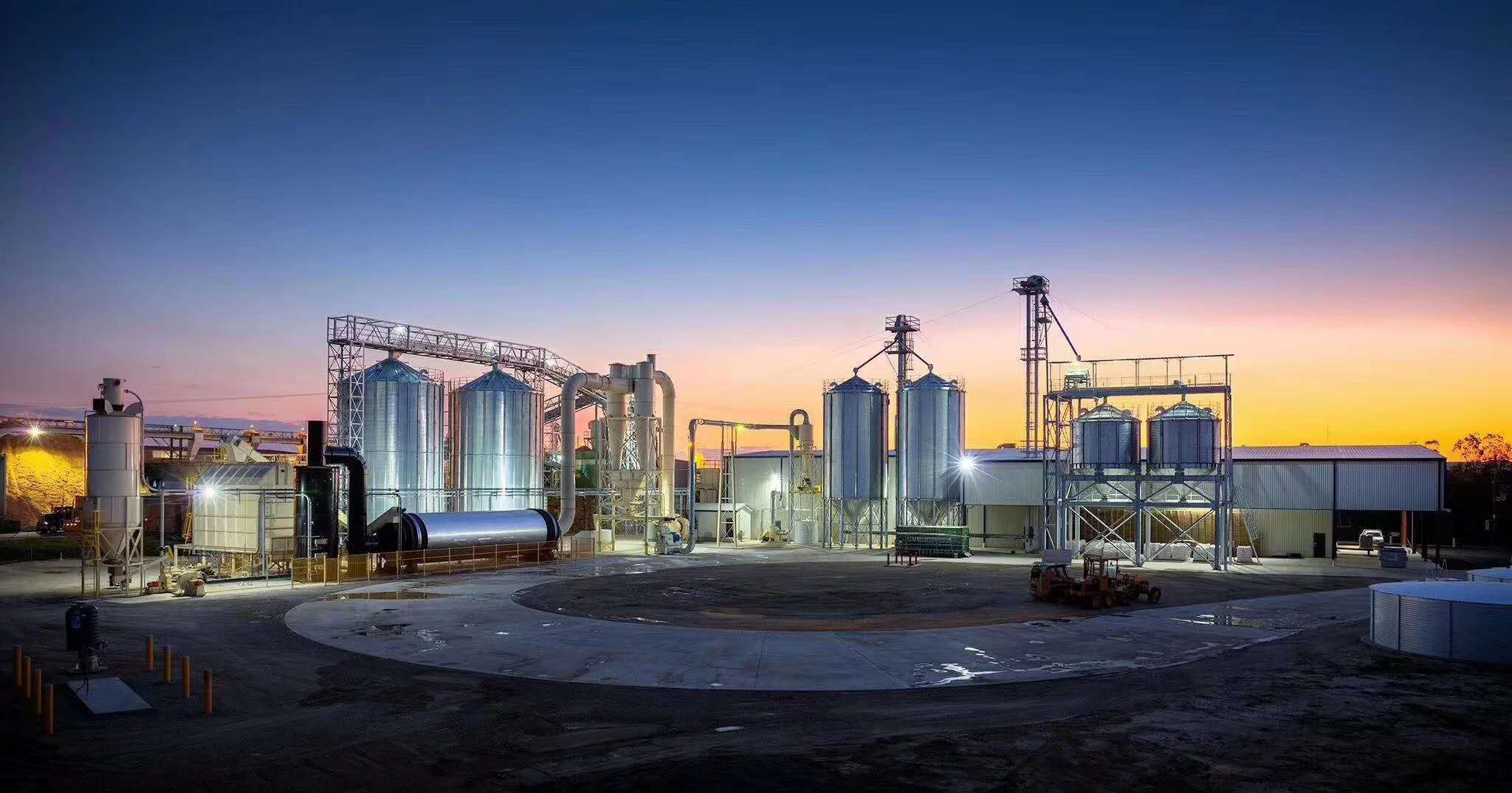

Grain silo, sometimes known as grain bin, grain tanks, grain elevator or grain storage bin, is a part of grain elevator structure used for storing grain. The assembled silo sheet is widely used for the purpose of commercial grain storage around the world, and our grain silo corrugated sheet roll forming machine, also called grain bin sidewall rollformer, is especially designed to manufacture such steel sheets.
Working Flow of Roll Forming Machine
Manual de-coiler --- Electric Feeding --- Servo motor feeding ----oll Forming Machine------Computer Control Cabinet---Automatic cutting Mechanism ---Run-out Tables
Specifications of Silo Panel Roll Forming Machine
| No. | Item | Description |
| 1. | Coil width | Depend on your profiles |
| 2. | Working speed | 12-15m/min |
| 3. | Roll station | about 16 - 24 stations |
| 4. | Material of roller | Grade 45 steel, polished and coated with chrome |
| 5. | Material of main shaft | 45﹟ steel |
| 6 | Diameter roller | 70mm |
| 7. | Main power | 7.5KW |
| 8. | Forming thickness | 1.0mm zinc and color steel, 250Mpa-G550MPA |
| 9. | Transmission | by single Chains 1.5inch |
| 10. | Feeding and guide | Surface polished and coated with chrome |
| 11. | Machine drive parts | Adopt protect cover |
| 12. | Machine station | Adopt new station with chrome |
| 13. | Size of main machine | 7500x1500x1300(mm) L x W x H need 1x40GP container |
| 14. | Weight | about 8000Kgs |
| 15. | Color of machine | Blue ( or depend on customer’s request) |
| 16. | Machine legs | Four legs (made from metal) in 350mm |
Machine Components
| 10 Ton hydraulic decoiler | 1 set |
| Straightening machine | 1 set |
| Main roll forming | 1 set |
| Punching machine | 1 set |
| Curving Machine | 1 set |
| Hydraulic shear | 1 set |
| Hydraulic station | 1 set |
| PLC Control cabinet | 1 set |
| Stacker | 1 set |
Description
1: We have professional engineering team and can use the Copra Software skifllfully to design the forming diagram according to the profile drawing.
2: We adopt the heavy stands to make the machine robust and strong.
3: We adopt hydrauli flying shear all profiles.
4: The step beams is popular used in the project of supermarket construction in North America and
South America e.g Mexico, Argentina,Chile and so on.
5: We exported the step beam machine to Mexico and all of the profiles produced can meet the customer’s requirements.
6: We also can supply accessories parts machine together with rack machine,crossbar machine,base machine etc.
