80mm Shaft Dia Rack Roll Forming Machine , Cable Tray Production Line Fully Automatic Operation

Product Categories
Wuxi YBT Machinery Equipment Co.,Ltd.
Contact Now

80mm Shaft Dia Rack Roll Forming Machine , Cable Tray Production Line Fully Automatic Operation

Place of Origin : China

Brand Name : YBT

Certification : CE ISO SGS

Model Number : YT376506

MOQ : 1 Set

Price : Negotiation

Packaging Details : Standard export packing with each machine tied and protected in container

Delivery Time : 45-60 days

Payment Terms : T/T

Supply Ability : 10set

product name : Supermarket Shelves Making Machine

Production Capacity : 8-12m/min

Color : Choosed

Cutting blade material : Cr12Mov

Cutting system : Automatic Hydyaulic Cutting

Power(W) : 15kw

Contact Now

Automatic Metal storage racks cold Roll Forming Machine for storage shelves

Working Flow
Decoiling --- leveling --- Servo feeding --- Punching Holes ---- Rollforming ----Cuting--- Finished Racks on Tables

80mm Shaft Dia Rack Roll Forming Machine , Cable Tray Production Line Fully Automatic Operation

Main parameters:
Control System
PLC Colored Touch Screen
Main Frame
350H STEEL
Side Plate Thickness
18mm
Main Power
15kw+4kw
Power Supply
380V, 3-Phase,50Hz or any
Forming Speed
8-12m/min
Roll Station
19 stands
Shaft Diameter
80mm
Feeding Thickness
1.5-2.5mm
Cutter Standard
Cr12
Roller Standard
45# Plating Cr
Customized according to customer requirements

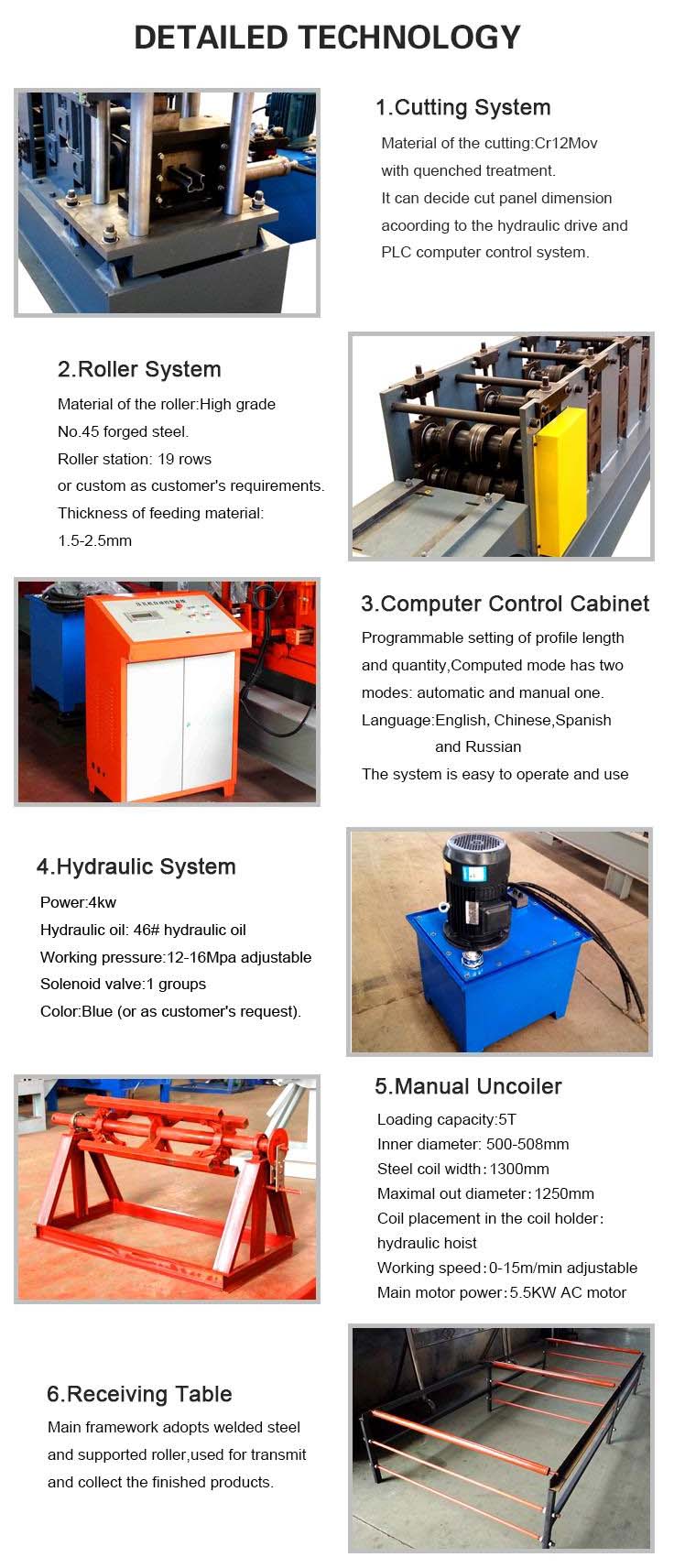

Machine component

1Decoiler1 set
2Auto Punching Machine1 Set
3Main Rollforming Machine1 set
4Straightening System1 set
5Hydraulic Station1 set
6Auto-Cutting system1 set
7PLC Control System1 set
8Run Out Table1 set


Customized rack upright post drawing
80mm Shaft Dia Rack Roll Forming Machine , Cable Tray Production Line Fully Automatic Operation

Advantages of Our Machines

1. High quality anti-rust roller: CNC machine processed, Cr12 mould steel for a long lifespan
2. Heating treatment: it is processed for the cutting frame to release the steel stress to avoid deformation and the hardness can reach to 60 degree.
3. Cutter blade: Cr12 mould steel with quenching treatment for long lifespan.
4. Stronger driving system: bigger inch train,or gear box driving system.
5. High precision: shafts for rollers are processeded by grinding machine. Rollers are CNC processed to ensure the precision performance.
6. Excellent after services: Technician can be sent to customers' factory for installation and training; 24 hours feedback and 7 days spare parts delivery.

Guarantee:
12 Months guarantee. if some part of the machine is broken. we will supply the best part,but if the damaged parts due to operate error,buyer will pay for the shipping fee.
After-sale service:
We sent technician to your country to fix the machine.the buyer shoule bear all the cost includng:visa,roundtrip ticket and suitable accommodation,also buyer should pay the salary 100USD/DAY.
