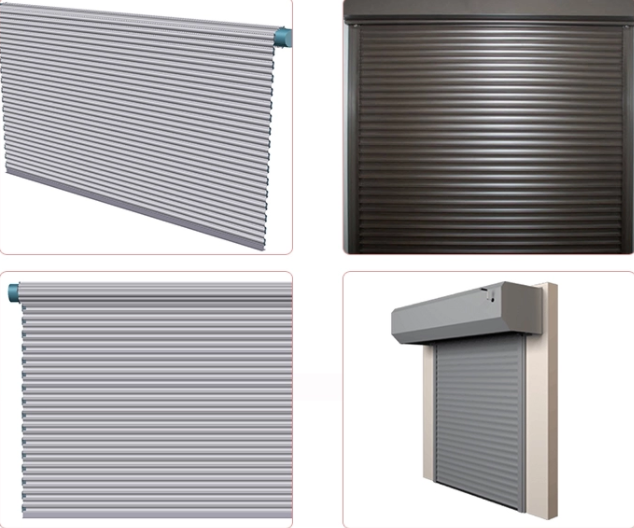

The finished product of High Quality Roller Shutter Door Roll Forming Machine, Door Roll Forming Machine Rolling Slats is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.

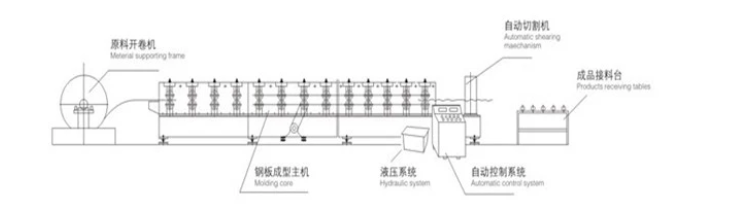

Production Process:
Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving
| No. | Item | Specification |
| 1 | Can Formed Material | GI,AI |
| 2 | Equipment operation | Automatic |
| 3 | Voltage | 380V 50Hz 3Phase or as your requirement |
| 4 | Thickness of sheet (mm) | 0.5-1.0mm |
| 5 | Material width(mm) | As your requirement |
| 6 | Cover Width of the sheet after formed | as your drawing |
| 7 | The size of the roll forming machine | 4500mmx900mmx1300mm |
| 8 | Speed | 8-15m/min |
| 9 | Diameter of shaft | 40mm |
| 10 | Weight of the Machine | 2000-2500KGS |
| 11 | Material of rollers | Cr12 |
| 12 | Motor brand | Siemens or Guomao |
| 13 | PLC | Siemens or Delta or Mitsubushi |
| 14 | Total power (kw) | 8kw |
| 15 | Power of hydraulic system | 4kw |
| 16 | Power of main molding core | 4kw |
| Name | Quantity | Units |
| Decoiler | 1 | Set |
| Main Machine | Feeding device | 1 | Set |
| Roll forming system | 1 | Set |
| Cut Equipment | 1 | Set |
| Hydraulic system | 1 | Set |
| Electriccontrol system | 1 | Set |
| Supporter/Automatic Stacker | 1 | Set |
Advantage:
1. The machine is our new type new design,use all import electric part such as PLC,Frequency converter,
2. The electromagnetic valve,Aviation plug,Touch screen,and so on.we use the brand such Mitsubishi,Matsushita,Siemens and so on
3. Also the oil pump,electric motor Reducer we use Yuken, all the part of the machine have best quality and more than 35 years life time.
4. The production size we can design the machine all as customize,customer just show us the profile drawing material thickness width, we can design the machine according as the request
5. When we finish the machine, we will test the machine and adjust the machine many times to be sure the machine have a perfect status
6. when customer receive the machine, the machine can be used very easy
